This example shows the focusing of an ideal lens in 1:1 configuration
for different sources (see main program at the bottom)
The systems are:
'convergent spherical'
'divergent spherical with lens'
'plane with lens'
'Gaussian with lens'
'Hermite with lens'
'Undulator with lens'
"""
import numpy
from srxraylib.waveoptics.wavefront2D import Wavefront2D
from srxraylib.waveoptics.propagator2D import propagate_2D_fraunhofer
from srxraylib.waveoptics.propagator2D import propagate_2D_fresnel, propagate_2D_fresnel_convolution, propagate_2D_fresnel_srw
from scipy.special import hermite
import scipy.constants as codata
# this is undulator block
from pySRU.ElectronBeam import ElectronBeam
from pySRU.MagneticStructureUndulatorPlane import MagneticStructureUndulatorPlane
from pySRU.TrajectoryFactory import TrajectoryFactory, TRAJECTORY_METHOD_ANALYTIC,TRAJECTORY_METHOD_ODE
from pySRU.RadiationFactory import RadiationFactory,RADIATION_METHOD_NEAR_FIELD, RADIATION_METHOD_APPROX_FARFIELD
from pySRU.SourceUndulatorPlane import SourceUndulatorPlane
try:
import oasys_srw.srwlib as srwlib
SRWLIB_AVAILABLE = True
except:
SRWLIB_AVAILABLE = False
print("SRW is not available")
SRWLIB_AVAILABLE = False
# global variables
codata_mee = numpy.array(codata.physical_constants["electron mass energy equivalent in MeV"][0])
m2ev = codata.c * codata.h / codata.e # lambda(m) = m2eV / energy(eV)
do_plot = True
if do_plot:
from srxraylib.plot.gol import plot,plot_image,plot_table
#
# auxiliar functions
#
def line_fwhm(line):
#
#CALCULATE fwhm in number of abscissas bins (supposed on a regular grid)
#
tt = numpy.where(line>=max(line)*0.5)
if line[tt].size > 1:
# binSize = x[1]-x[0]
FWHM = (tt[0][-1]-tt[0][0])
return FWHM
else:
return -1
def propagation_to_image(wf,do_plot=do_plot,plot_title="Before lens",method='fft',
propagation_distance=30.0,defocus_factor=1.0,propagation_steps=1,show=1):
method_label = "fresnel (%s)"%method
print("\n# ")
print("# near field fresnel (%s) diffraction and focusing "%(method_label))
print("# ")
# \ | /
# * /users/pirro/Documents/workspace/syned | | | *
# / | \
# <------- d ---------------><--------- d ------->
# d is propagation_distance
print("Incident intensity: ",wf.get_intensity().sum())
# propagation downstream the lens to image plane
for i in range(propagation_steps):
if propagation_steps > 1:
print(">>> Propagating step %d of %d; propagation_distance=%g m"%(i+1,propagation_steps,
propagation_distance*defocus_factor/propagation_steps))
if method == 'fft':
wf = propagate_2D_fresnel(wf, propagation_distance*defocus_factor/propagation_steps)
elif method == 'convolution':
wf = propagate_2D_fresnel_convolution(wf, propagation_distance*defocus_factor/propagation_steps)
elif method == 'srw':
wf = propagate_2D_fresnel_srw(wf, propagation_distance*defocus_factor/propagation_steps)
elif method == 'fraunhofer':
wf = propagate_2D_fraunhofer(wf, propagation_distance*defocus_factor/propagation_steps)
else:
raise Exception("Not implemented method: %s"%method)
horizontal_profile = wf.get_intensity()[:,int(wf.size()[1]/2)]
horizontal_profile /= horizontal_profile.max()
print("FWHM of the horizontal profile: %g um"%(1e6*line_fwhm(horizontal_profile)*wf.delta()[0]))
vertical_profile = wf.get_intensity()[int(wf.size()[0]/2),:]
vertical_profile /= vertical_profile.max()
print("FWHM of the vertical profile: %g um"%(1e6*line_fwhm(vertical_profile)*wf.delta()[1]))

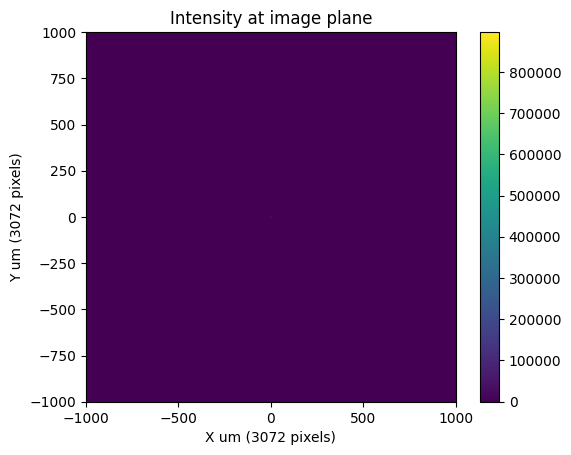

if do_plot:
from srxraylib.plot.gol import plot,plot_image
plot_image(wf.get_intensity(),1e6*wf.get_coordinate_x(),1e6*wf.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf.size()[0]),ytitle="Y um (%d pixels)",title='intensity (%s)'%method,show=False)

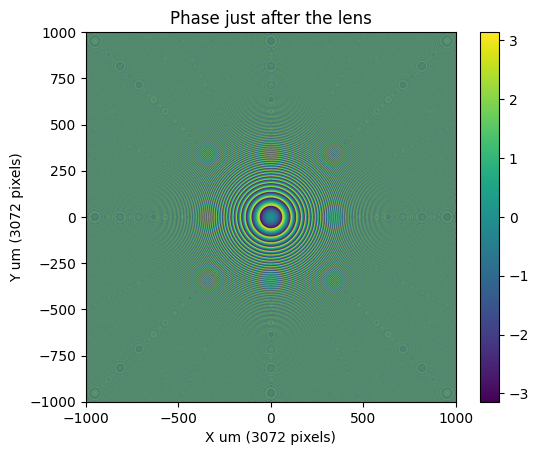

plot_image(wf.get_phase(),1e6*wf.get_coordinate_x(),1e6*wf.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf.size()[0]),ytitle="Y um (%d pixels)"%(wf.size[1]),title='phase (%s)'%method,show=False)
plot(wf.get_coordinate_x(),horizontal_profile,
wf.get_coordinate_y(),vertical_profile,
legend=['Horizontal profile','Vertical profile'],title="%s %s"%(plot_title,method),show=show)
print("Output intensity: ",wf.get_intensity().sum())
return wf,wf.get_coordinate_x(),horizontal_profile
#
# main function
#
def main(mode_wavefront_before_lens):
lens_diameter = 0.002 # 0.001 # 0.002
if mode_wavefront_before_lens == 'Undulator with lens':
npixels_x = 512
else:
npixels_x = int(2048*1.5)
pixelsize_x = lens_diameter / npixels_x
print("pixelsize: ",pixelsize_x)
pixelsize_y = pixelsize_x
npixels_y = npixels_x
wavelength = 1.24e-10
propagation_distance = 30.0
defocus_factor = 1.0 # 1.0 is at focus
propagation_steps = 1
# for Gaussian source
sigma_x = lens_diameter / 400 # 5e-6
sigma_y = sigma_x # 5e-6
# for Hermite-Gauss, the H and V mode index (start from 0)
hm = 3
hn = 1
#
# initialize wavefronts of dimension equal to the lens
#
wf_fft = Wavefront2D.initialize_wavefront_from_range(x_min=-pixelsize_x*npixels_x/2,x_max=pixelsize_x*npixels_x/2,
y_min=-pixelsize_y*npixels_y/2,y_max=pixelsize_y*npixels_y/2,
number_of_points=(npixels_x,npixels_y),wavelength=wavelength)
wf_convolution = Wavefront2D.initialize_wavefront_from_range(x_min=-pixelsize_x*npixels_x/2,x_max=pixelsize_x*npixels_x/2,
y_min=-pixelsize_y*npixels_y/2,y_max=pixelsize_y*npixels_y/2,
number_of_points=(npixels_x,npixels_y),wavelength=wavelength)
if SRWLIB_AVAILABLE:
wf_srw = Wavefront2D.initialize_wavefront_from_range(x_min=-pixelsize_x*npixels_x/2,x_max=pixelsize_x*npixels_x/2,
y_min=-pixelsize_y*npixels_y/2,y_max=pixelsize_y*npixels_y/2,
number_of_points=(npixels_x,npixels_y),wavelength=wavelength)
#
# calculate/define wavefront at zero distance downstream the lens
#
if mode_wavefront_before_lens == 'convergent spherical':
# no need to propagate nor define lens
wf_fft.set_spherical_wave(complex_amplitude=1.0,radius=-propagation_distance)
wf_convolution.set_spherical_wave(complex_amplitude=1.0,radius=-propagation_distance)
if SRWLIB_AVAILABLE: wf_srw.set_spherical_wave(complex_amplitude=1.0,radius=-propagation_distance)
elif mode_wavefront_before_lens == 'divergent spherical with lens':
# define wavefront at zero distance upstream the lens and apply lens
focal_length = propagation_distance / 2.
wf_fft.set_spherical_wave(complex_amplitude=1.0,radius=propagation_distance)
wf_fft.apply_ideal_lens(focal_length,focal_length)
wf_convolution.set_spherical_wave(complex_amplitude=1.0,radius=propagation_distance)
wf_convolution.apply_ideal_lens(focal_length,focal_length)
if SRWLIB_AVAILABLE:
wf_srw.set_spherical_wave(complex_amplitude=1.0,radius=propagation_distance)
wf_srw.apply_ideal_lens(focal_length,focal_length)
elif mode_wavefront_before_lens == 'plane with lens':
# define wavefront at zero distance upstream the lens and apply lens
focal_length = propagation_distance
wf_fft.set_plane_wave_from_complex_amplitude(1.0+0j)
wf_fft.apply_ideal_lens(focal_length,focal_length)
wf_convolution.set_plane_wave_from_complex_amplitude(1.0+0j)
wf_convolution.apply_ideal_lens(focal_length,focal_length)
if SRWLIB_AVAILABLE:
wf_srw.set_plane_wave_from_complex_amplitude(1.0+0j)
wf_srw.apply_ideal_lens(focal_length,focal_length)
elif mode_wavefront_before_lens == 'Gaussian with lens':
# define wavefront at source point, propagate to the lens and apply lens
X = wf_fft.get_mesh_x()
Y = wf_fft.get_mesh_y()
intensity = numpy.exp( - X**2/(2*sigma_x**2)) * numpy.exp( - Y**2/(2*sigma_y**2))
wf_fft.set_complex_amplitude( numpy.sqrt(intensity) )
wf_convolution.set_complex_amplitude( numpy.sqrt(intensity) )
if SRWLIB_AVAILABLE: wf_srw.set_complex_amplitude( numpy.sqrt(intensity) )
# plot
plot_image(wf_fft.get_intensity(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf_fft.size()[0]),ytitle="Y um (%d pixels)"%(wf_fft.size()[1]),title="Gaussian source",show=1)
wf_fft, tmp1, tmp2 = propagation_to_image(wf_fft,method='fft',propagation_distance=propagation_distance,
do_plot=0,plot_title="Before lens")
wf_convolution, tmp1, tmp2 = propagation_to_image(wf_convolution,method='convolution',propagation_distance=propagation_distance,
do_plot=0,plot_title="Before lens")
if SRWLIB_AVAILABLE:
wf_srw, tmp1, tmp2 = propagation_to_image(wf_srw,method='srw',propagation_distance=propagation_distance,
do_plot=0,plot_title="Before lens")
plot_image(wf_fft.get_intensity(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf_fft.size()[0]),ytitle="Y um",title="Before lens fft",show=1)
plot_image(wf_convolution.get_intensity(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf_convolution.size()[0]),ytitle="Y um",title="Before lens convolution",show=1)
focal_length = propagation_distance / 2
wf_fft.apply_ideal_lens(focal_length,focal_length)
wf_convolution.apply_ideal_lens(focal_length,focal_length)
if SRWLIB_AVAILABLE: wf_srw.apply_ideal_lens(focal_length,focal_length)
elif mode_wavefront_before_lens == 'Hermite with lens':
# define wavefront at source point, propagate to the lens and apply lens
X = wf_fft.get_mesh_x()
Y = wf_fft.get_mesh_y()
efield = (hermite(hm)(numpy.sqrt(2)*X/sigma_x)*numpy.exp(-X**2/sigma_x**2))**2 \
* (hermite(hn)(numpy.sqrt(2)*Y/sigma_y)*numpy.exp(-Y**2/sigma_y**2))**2
wf_fft.set_complex_amplitude( efield )
wf_convolution.set_complex_amplitude( efield )
if SRWLIB_AVAILABLE: wf_srw.set_complex_amplitude( efield )
# plot
plot_image(wf_fft.get_intensity(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf_fft.size()[0]),ytitle="Y um (%d pixels)"%(wf_fft.size()[0]),title="Hermite-Gauss source",show=1)
wf_fft, tmp1, tmp2 = propagation_to_image(wf_fft,method='fft',propagation_distance=propagation_distance,
do_plot=0,plot_title="Before lens")
wf_convolution, tmp1, tmp2 = propagation_to_image(wf_convolution,method='convolution',propagation_distance=propagation_distance,
do_plot=0,plot_title="Before lens")
if SRWLIB_AVAILABLE:
wf_srw, tmp1, tmp2 = propagation_to_image(wf_srw,method='srw',propagation_distance=propagation_distance,
do_plot=0,plot_title="Before lens")
plot_image(wf_fft.get_intensity(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf_fft.size()[0]),ytitle="Y um (%d pixels)"%(wf_fft.size()[0]),title="Before lens fft",show=1)
plot_image(wf_convolution.get_intensity(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf_fft.size()[0]),ytitle="Y um (%d pixels)"%(wf_fft.size()[0]),title="Before lens convolution",show=1)
focal_length = propagation_distance / 2
wf_fft.apply_ideal_lens(focal_length,focal_length)
wf_convolution.apply_ideal_lens(focal_length,focal_length)
if SRWLIB_AVAILABLE: wf_srw.apply_ideal_lens(focal_length,focal_length)
elif mode_wavefront_before_lens == 'Undulator with lens':
beamline = {}
beamline['ElectronCurrent'] = 0.2
beamline['ElectronEnergy'] = 6.0
beamline['Kv'] = 1.68 # 1.87
beamline['NPeriods'] = 111 # 14
beamline['PeriodID'] = 0.018 # 0.035
beamline['distance'] = propagation_distance
gamma = beamline['ElectronEnergy'] / (codata_mee * 1e-3)
print ("Gamma: %f \n"%(gamma))
resonance_wavelength = (1 + beamline['Kv']**2 / 2.0) / 2 / gamma**2 * beamline["PeriodID"]
resonance_energy = m2ev / resonance_wavelength
print ("Resonance wavelength [A]: %g \n"%(1e10*resonance_wavelength))
print ("Resonance energy [eV]: %g \n"%(resonance_energy))
# red shift 100 eV
resonance_energy = resonance_energy - 100
myBeam = ElectronBeam(Electron_energy=beamline['ElectronEnergy'], I_current=beamline['ElectronCurrent'])
myUndulator = MagneticStructureUndulatorPlane(K=beamline['Kv'], period_length=beamline['PeriodID'],
length=beamline['PeriodID']*beamline['NPeriods'])
XX = wf_fft.get_mesh_x()
YY = wf_fft.get_mesh_y()
X = wf_fft.get_coordinate_x()
Y = wf_fft.get_coordinate_y()
source = SourceUndulatorPlane(undulator=myUndulator,
electron_beam=myBeam, magnetic_field=None)
omega = resonance_energy * codata.e / codata.hbar
Nb_pts_trajectory = int(source.choose_nb_pts_trajectory(0.01,photon_frequency=omega))
print("Number of trajectory points: ",Nb_pts_trajectory)
traj_fact = TrajectoryFactory(Nb_pts=Nb_pts_trajectory,method=TRAJECTORY_METHOD_ODE,
initial_condition=None)
print("Number of trajectory points: ",traj_fact.Nb_pts)
if (traj_fact.initial_condition == None):
traj_fact.initial_condition = source.choose_initial_contidion_automatic()
print("Number of trajectory points: ",traj_fact.Nb_pts,traj_fact.initial_condition)
#print('step 2')
rad_fact = RadiationFactory(method=RADIATION_METHOD_NEAR_FIELD, photon_frequency=omega)
#print('step 3')
trajectory = traj_fact.create_from_source(source=source)
#print('step 4')
radiation = rad_fact.create_for_one_relativistic_electron(trajectory=trajectory, source=source,
XY_are_list=False,distance=beamline['distance'], X=X, Y=Y)
efield = rad_fact.calculate_electrical_field(trajectory=trajectory,source=source,
distance=beamline['distance'],X_array=XX,Y_array=YY)
tmp = efield.electrical_field()[:,:,0]
wf_fft.set_photon_energy(resonance_energy)
wf_convolution.set_photon_energy(resonance_energy)
if SRWLIB_AVAILABLE: wf_srw.set_photon_energy(resonance_energy)
wf_fft.set_complex_amplitude( tmp )
wf_convolution.set_complex_amplitude( numpy.sqrt(tmp) )
if SRWLIB_AVAILABLE: wf_srw.set_complex_amplitude( numpy.sqrt(tmp) )
# plot
plot_image(wf_fft.get_intensity(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
xtitle="X um (%d pixels)"%(wf_fft.size()[0]),ytitle="Y um (%d pixels)"%(wf_fft.size()[0]),title="UND source at lens plane",show=1)
# apply lens
focal_length = propagation_distance / 2
wf_fft.apply_ideal_lens(focal_length,focal_length)
wf_convolution.apply_ideal_lens(focal_length,focal_length)
if SRWLIB_AVAILABLE: wf_srw.apply_ideal_lens(focal_length,focal_length)
else:
raise Exception("Unknown mode")
plot_image(wf_fft.get_phase(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
title="Phase just after the lens",xtitle="X um (%d pixels)"%(wf_fft.size()[0]),ytitle="Y um (%d pixels)"%(wf_fft.size()[0]),show=1)
wf_fft, x_fft, y_fft = propagation_to_image(wf_fft,do_plot=0,method='fft',
propagation_steps=propagation_steps,
propagation_distance = propagation_distance, defocus_factor=defocus_factor)
wf_convolution, x_convolution, y_convolution = propagation_to_image(wf_convolution,do_plot=0,method='convolution',
propagation_steps=propagation_steps,
propagation_distance = propagation_distance, defocus_factor=defocus_factor)
if SRWLIB_AVAILABLE:
wf_srw, x_srw, y_srw = propagation_to_image(wf_srw,do_plot=0,method='srw',
propagation_steps=propagation_steps,
propagation_distance = propagation_distance, defocus_factor=defocus_factor)
plot_image(wf_fft.get_intensity(),1e6*wf_fft.get_coordinate_x(),1e6*wf_fft.get_coordinate_y(),
title="Intensity at image plane",xtitle="X um (%d pixels)"%(wf_fft.size()[0]),ytitle="Y um (%d pixels)"%(wf_fft.size()[0]),show=1)
if do_plot:
if SRWLIB_AVAILABLE:
x = x_fft
y = numpy.vstack((y_fft,y_srw,y_convolution))

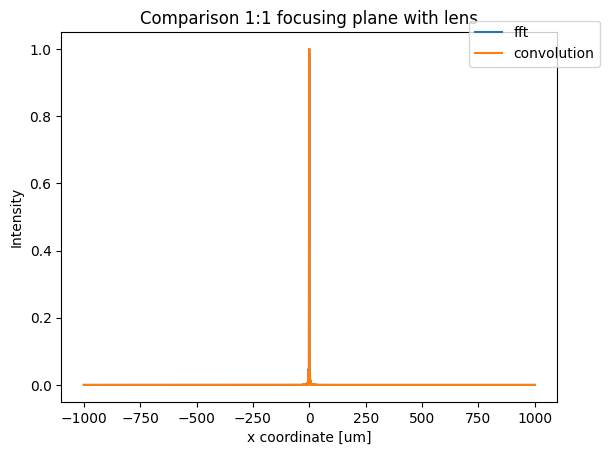

plot_table(1e6*x,y,legend=["fft","srw","convolution"],ytitle="Intensity",xtitle="x coordinate [um]",
title="Comparison 1:1 focusing "+mode_wavefront_before_lens)
else:
x = x_fft
y = numpy.vstack((y_fft,y_convolution))
plot_table(1e6*x,y,legend=["fft","convolution"],ytitle="Intensity",xtitle="x coordinate [um]",
title="Comparison 1:1 focusing "+mode_wavefront_before_lens)
if __name__ == "__main__":
mode_wavefront_before_lens = 'convergent spherical'
# mode_wavefront_before_lens = 'divergent spherical with lens'
mode_wavefront_before_lens = 'plane with lens'
# mode_wavefront_before_lens = 'Gaussian with lens'
# mode_wavefront_before_lens = 'Hermite with lens'
# mode_wavefront_before_lens = 'Undulator with lens'
main(mode_wavefront_before_lens)
